Name: Detecting Forklift Motion Sensors For Industrial High-Speed Doors
Brand: Shenzhen Jutai Comm Co., Ltd.
SKU: RVP42-7M
Availability: InStock

Detecting Forklift Motion Sensors For Industrial High-Speed Doors

Place of Origin	China
Nombre de la marca	JUTAI
Certificación	FDA, E-MARK, CE, ISO, FCC, RoHS, DOT, ASTM, AS/NZS, CCC, GS
Model Number	RVP42-7M
Minimum Order Quantity	1
Precio	negotiable
Packaging Details	Cartoon
Delivery Time	5-8 days
Payment Terms	T/T, L/C, D/A, D/P, Western Union, Paypal, , MoneyGram, Alipay
Supply Ability	1000 pieces per month

Output Type

1 Relay Output.

Power Supply

12-24VADC

Antenna Frequency

24.125GHz

Detection Height

3m to 7m

Package Size

28.00cm * 13.00cm * 10.00cm

Function

Forklift People Distinguish

Waterproof

IP65

Working Temperature

-30~70℃

Setting

Bluetooth APP

Resaltar

industrial door motion sensor

forklift motion sensor for high-speed doors

industrial high-speed door motion detector

Product Description

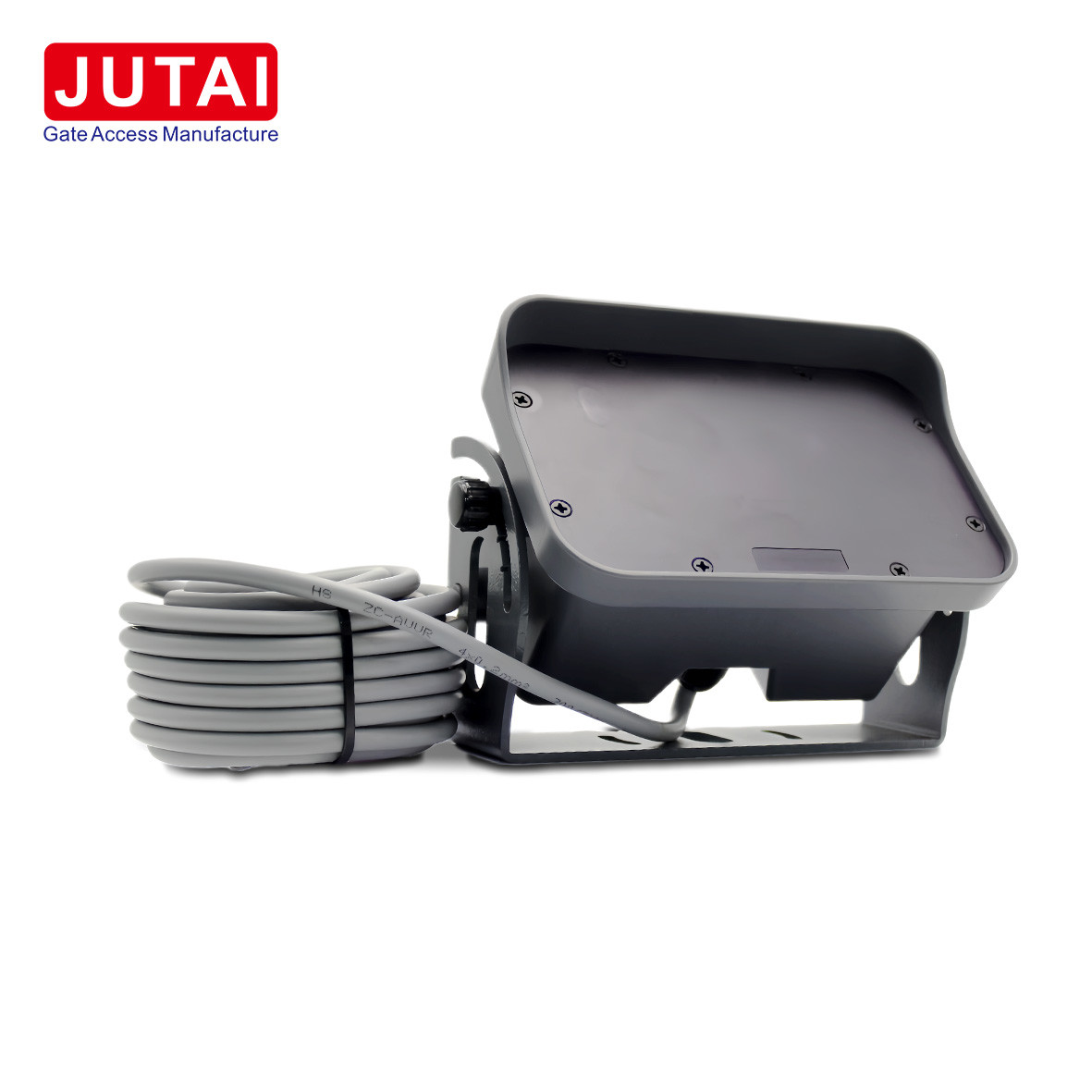

The JUTAI RVP42-7M is a high-performance industrial motion sensor designed for precision detection in industrial and commercial environments. Leveraging 24.125GHz Doppler radar technology with a planar module, it efficiently detects vehicles and pedestrians, while offering advanced lateral motion filtering to reduce false triggers. Ideal for industrial doors, garage doors, cold storage doors, and road gates, this sensor ensures reliable operation even in harsh conditions, backed by an IP65 protection rating and a wide temperature range of -30°C to +60°C.

With flexible mounting heights (2m to 7m) and adjustable sensitivity, it adapts to diverse scenarios—from separating vehicle and pedestrian movement to monitoring bidirectional traffic. The 7m cable, robust aluminum-polycarbonate housing, and 1A relay output (supporting max 125V AC/60V DC) further enhance its durability and functionality, making it a trusted choice for industrial security and automation.

Technical Parameters

Parameter	Specification
Technology	Doppler radar with planar module
Emission Frequency	24.125 GHz
Transmission Power	<20 dBm
Working Voltage	12-36V ADC
Working Current	<100 mA
Temperature Range	-30°C to +60°C
Relative Humidity	0%-95% (non-condensing)
Mounting Height	2m to 7m
Relay Output	Defaults NO (NC optional)
Max Switching Voltage	125V AC / 60V DC
Max Switching Current	1A
Housing Material	Gray anodized aluminum with polycarbonate
Size	164mm × 111mm × 94.5mm
Weight	630g
Protection Rating	IP65
Max Detection Speed	25 km/h (vehicles)
Cable Length	7m

Key Features

Dual Detection Capability: Identifies both vehicles and pedestrians with adjustable modes for forward, backward, or bidirectional movement.
Lateral Motion Filtering: Reduces false alarms from cross-moving objects via adjustable filtration levels.
Harsh Environment Resistance: IP65 rating and wide temperature/humidity tolerance ensure reliability in industrial settings.
Flexible Installation: Adaptable to 2m-7m mounting heights with easy wiring and vibration-resistant design.
Durable Build: Robust housing and 7m cable for long-term, low-maintenance operation.

Perfect for automating access control and enhancing safety in industrial facilities, parking lots, and logistics hubs.
